W8 - Wireless Shock Sensor (W8-R2000D40)
W8-R2000D40
W8 Shock Sensor
$5,999.00
5999.00
In stock
Aluminum 7075
Piezoresistive Accelerometer: ± 2,000g
Digital Capacitive Accelerometer: ± 40g
Battery: 4000 mAh
Storage: 16 GB
Piezoresistive Accelerometer: ± 2,000g
Digital Capacitive Accelerometer: ± 40g
Battery: 4000 mAh
Storage: 16 GB
Lead Time: Unavailable - Shipping & Ordering
W8-R2000D40
Why enDAQ?
Demo with an Engineer
Visit our Help Center
Customer Testimonials
Contact Customer Success

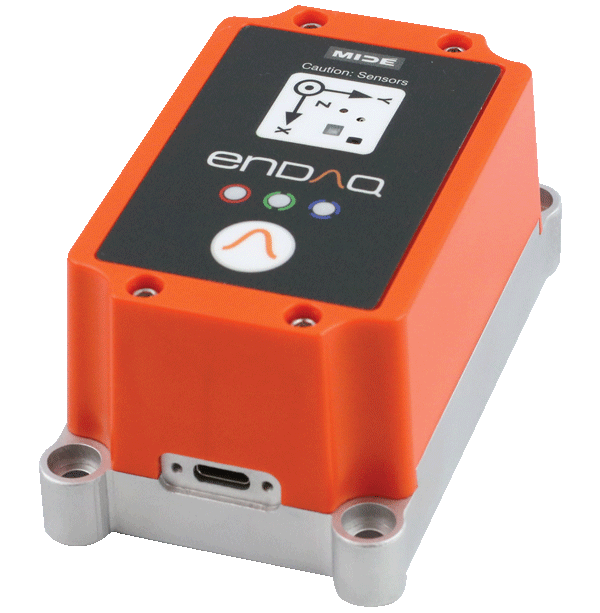

The W8-R2000D40 is a shock recorder with a high performance piezoresistive accelerometer, a secondary capacitive accelerometer and other environmental sensors. It uploads directly to the enDAQ cloud over WiFi after completing a recording yet this wireless connectivity can be configured to be off when desired. This model, with its wide measurement range of 2,000g is very popular for shock testing. Its aluminum enclosure improves reliability in harsh environments and widens its frequency response. The W8 offers an impressive 4,000 mAh battery (our largest) to allow for the longest recording times of our sensors.
Complimentary enDAQ Pelican case included with every enDAQ® sensor order.
Additional cases can be purchased here: enDAQ Accessories
Product Features
| Convenient |
|
|---|---|
| Adaptable |
|
| Reliable |
|
Accelerometer Specifications>> More Information
| Accelerometer Type | Range | Sampling Rate | Bandwidth | Noise | Resolution |
| Piezoresistive | ± 2,000g | 20,000 Hz | 0 to 2,000 Hz | < 1.6 gRMS | 0.06 g |
| Digital Capacitive | ± 40g | 4,000 Hz | 0 to 300 Hz | < 0.01 gRMS | 0.00008 g |
Frequency Response Plot
Additional Sensor Specifications >> More Information
| Sensor | Measurement Range | Resolution | Sampling Rate |
| Gyroscope | 2000°/s | 0.06 °/s | 0 (off) to 200 Hz |
| Magnetometer | ± 1300 µT | 0.3 µT | 0 (off) to 10 Hz |
| Temperature | -40 to 85 °C | 0.01 °C | 0 (off) to 10 Hz |
| Pressure | 1 to 200 kPa | 1.6 Pa | 0 (off) to 10 Hz |
| Humidity | 0 to 100 %RH | 0.04% RH | 0 (off) to 10 Hz |
| Light | 0 to > 20 uV | <100 mlx | 0 (off) to 4 Hz |
Environmental Specifications >> More Information
| Parameter | Range | Notes |
| Operating Temperature | -40°C to 80°C (-40°F to 176°F) | |
| Recommended Storage Temperature | 15°C to 30°C (59°F to 86°F) | Recharging Temperature 0°C to 45°C (32°F to 113°F) |
| Humidity | 0 to 95 %RH | Non-Condensing |
| Pressure | 20 kPa to 110 kPa (2.9 psi to 16.0 psi) | Absolute Pressure |
| Shock Limit | >3,000 g | Refer to Shock Report (PDF) |
| No Electric Field Susceptibility | 2 MHz to 18 GHz @ 200 V/m | Refer to EMI Test Report (PDF) |
| No Magnetic Field Susceptibility | 30 Hz to 100 kHz | Refer to EMI Test Report (PDF) |
Battery performance is heavily dependent upon the device configuration (sensor sample rates and triggers), battery age (including charging cycles), and temperature. The following table provides the battery life and storage capacity of this device assuming it has a relatively new battery and it is at room temperature. When showing performance it assumes all sensors are on at the default sample rate with the main accelerometer sample rate driving performance. With triggers, it assumes the device is in trigger mode 99% of the time. Here are some additional resources: Measurement Settings, Battery Specifications, Battery Life Estimator Tool.
| Sample Rate | Storage Capacity | Continuous Recording | Main Accel. Trigger | 2nd Accel. Trigger | Periodic/Time Trigger |
| 100 Hz | 44 days | 7 days | 8 days | 33 days | 2.0 years |
| 1,000 Hz | 18 days | 7 days | 8 days | 33 days | 1.9 years |
| 5,000 Hz | 6 days | 6 days | 8 days | 33 days | 1.7 years |
| 20,000 Hz | 34 hours | 3 days | 8 days | 33 days | 320 days |
Dimensions>> Download CAD Model
Mechanical Specifications >> Mounting
| Mass | 250 grams |
| Case Material | Aluminum Base, Polycarbonate Top |
| Mounting - Screw | 10-32 Bolts (23 ft-lb) |
| Mounting - Tape (Double Sided) | 3M 950 Tape |
| Length | 99.8 mm (3.93") |
| Width | 58.6 mm (2.31") |
| Thickness | 45.6 mm (1.80") |
| Ingress Protection | IP 50 (Dust Protected) |
Free Software Features>> More Information
