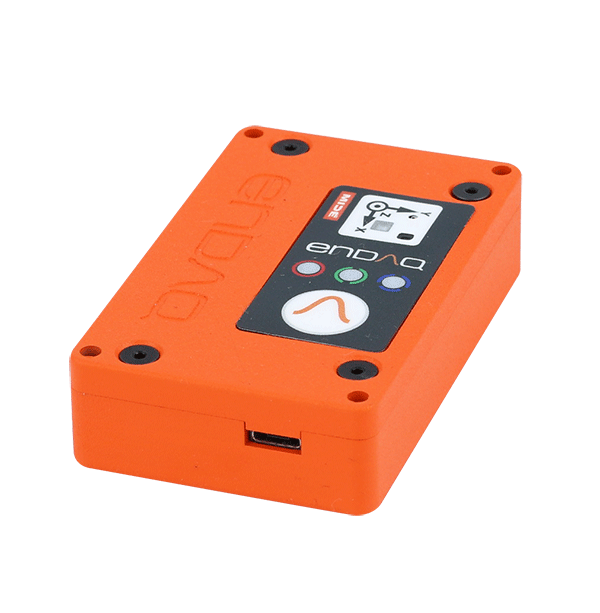

S5 Shock & Vibration Sensor

$3,000.00 3,000.00
In stock
Aluminum 7075
Piezoelectric Accelerometer: ± 100g
Digital Capacitive Accelerometer: ± 40g
Battery: 850 mAh
Storage: 8 GB
Lead Time: 2 business days plus shipping - Shipping & Ordering
Download Datasheet

Book a free Demo with an Engineer
Covid-19 Lead Times Affected: Please note your order may experience lead times up to 5 business days. We apologize for this inconvenience. For more information please click here, or contact our Customer Success Team. Please stay safe. Thank you.

Product Features
  • Convenient, Adaptable, and Reliable Learn More
  • Standalone Measurement System
    Embedded sensors, storage & power
  • Selectable High-Performance Accelerometers
    Variable capacitance, piezoelectric & piezoresistive
    Selectable measurement range from 16g to 2,000g
    Selectable sampling rate up to 20,000 samples per second
  • Up to 4 Billion Data Points of Memory
  • Embedded Sensor Suite
    Gyroscope, magnetometer, pressure, temperature, humidity & light
  • Triggering from Sensors and/or Time-Based
  • Rechargeable Battery Life of Over 4 Hours Continuous
    Can operate with external power
  • Simple USB Interface for Download & Charging
  • NIST Traceable Calibration
  • Trusted by Over 2,000 Different Commercial Customers
Accelerometer Specifications>> More Information
Accelerometer Type Range Sampling Rate Bandwidth Noise Resolution
Piezoelectric ± 100g 20,000 Hz 5 to 2,000 Hz < 0.04 gRMS 0.003 g
Digital Capacitive ± 40g 4,000 Hz 0 to 300 Hz < 0.01 gRMS 0.00008 g
Frequency Response Plot
Additional Sensor Specifications >> More Information
Sensor Measurement Range Resolution Sampling Rate
Gyroscope2000°/s0.06 °/s0 (off) to 200 Hz
Magnetometer± 1300 µT0.3 µT0 (off) to 10 Hz
Temperature-40 to 85 °C0.01 °C0 (off) to 10 Hz
Pressure1 to 200 kPa1.6 Pa0 (off) to 10 Hz
Humidity0 to 100 %RH0.04% RH0 (off) to 10 Hz
Light0 to > 20 uV<100 mlx0 (off) to 4 Hz
Environmental Specifications >> More Information
Parameter Range Notes
Operating Temperature -10°C to 80°C (14°F to 176°F)
Recommended Storage Temperature 15°C to 30°C (59°F to 86°F) Recharging Temperature 0°C to 45°C (32°F to 113°F)
Humidity 0 to 95 %RH Non-Condensing
Pressure 20 kPa to 110 kPa (2.9 psi to 16.0 psi) Absolute Pressure
Shock Limit >3,000 g Refer to Shock Report (PDF)
No Electric Field Susceptibility 2 MHz to 18 GHz @ 200 V/m Refer to EMI Test Report (PDF)
No Magnetic Field Susceptibility 30 Hz to 100 kHz Refer to EMI Test Report (PDF)
Battery performance is heavily dependent upon the device configuration (sensor sample rates and triggers), battery age (including charging cycles), and temperature. The following table provides the battery life and storage capacity of this device assuming it has a relatively new battery and it is at room temperature. When showing performance it assumes all sensors are on at the default sample rate with the main accelerometer sample rate driving performance. With triggers, it assumes the device is in trigger mode 99% of the time. Here are some additional resources: Measurement Settings, Battery Specifications, Battery Life Estimator Tool.
Sample Rate Storage Capacity Continuous Recording Main Accel. Trigger 2nd Accel. Trigger Periodic/Time Trigger
100 Hz 22 days 44 hours 44 hours 7 days 177 days
1,000 Hz 9 days 41 hours 44 hours 7 days 167 days
5,000 Hz 3 days 30 hours 44 hours 7 days 129 days
20,000 Hz 17 hours 17 hours 44 hours 7 days 68 days
Mechanical Specifications >> Mounting
Mass 100 grams
Case Material Aluminum 7075
Mounting - Screw 4-40 Bolts (100 in-oz)
Mounting - Tape (Double Sided) 3M 950 Tape
Length 76.2 mm (3.00")
Width 47.0 mm (1.85")
Thickness 18.3 mm (0.72")
Ingress Protection IP 50 (Dust Protected)
Free Software Features>> More Information
  • Free Standalone Software Packages
    Lab - Configuration, Quick Snapshot, Batch File Conversion
    Analyzer - Analysis of enDAQ Sensor Data in MATLAB
  • Configure Sensors for Measurement
  • Export/Convert Data to CSV or MATLAB
  • Analysis
    Digital Filtering
Why enDAQ?
  • Convenient Intuitive Operation and Sensors that Can Go Anywhere Learn More
  • Adaptable Selectable Sensor Packages and Configurable Settings and Software Learn More
  • Reliable Every Device is Calibrated and Made in the USA to Ensure Quality Learn More
