enDAQ waterproof enclosure for the S2, S3 and S4 sensor
enDAQ waterproof enclosure for the S2, S3 and S4 sensor
WP-S

$500.00 500.00
In stock
IP 68
Includes Mounting Magnets
Fits S2, S3 & S4 Sensors
Ideal For Harsh Environments
Lead Time: 2 business days plus shipping - Shipping & Ordering
Quantity
  • Home
  • WP-S Waterproof Enclosure

Waterproof Enclosure - For S2, S3 & S4 Sensors

The IP rating of our enDAQ sensors are IP50 which means it is dust-protected and cannot be subjected to liquid. We recognize that many of our customers perform testing in harsh environments and need a way to protect their sensors which is why we developed this waterproof mounting accessory. This accessory was engineered to provide a durable, safe, and secure enclosure for testing in harsh environments with an IP68 rating.  It also comes equipped with two rectangular mounting magnets each with a 54.1 lb pulling force.

*Does not include enDAQ sensor

enDAQ Pelican CaseComplimentary enDAQ Pelican case included with every enDAQ® sensor order.
Additional cases can be purchased here: enDAQ Accessories

Download Datasheet
Product Features
  • IP 68 with included O-ring seal
  • Tested to a water pressure of 150 psi (1034 kPa) or
    a water depth of 345 feet (105 meters)
  • Tested for 72 hours at constant pressure of 30 PSI
  • Total of 108.2 lb pull force mounting magnets
  • Dimensions of 4.80 in x 1.90 in x 1.25 in
  • Total mass of: 265 g

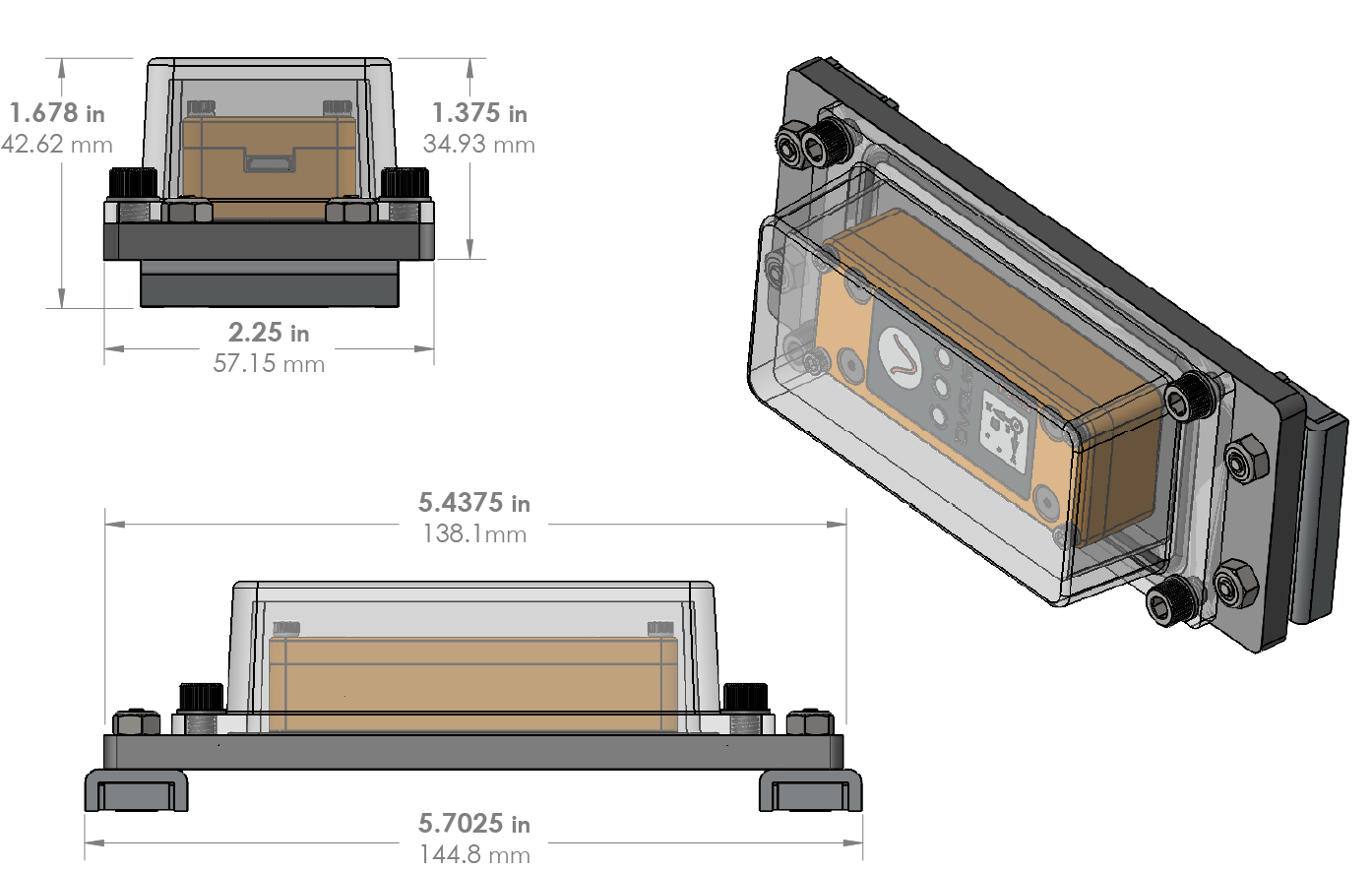

Dimensions>> Download CAD Model
