The Slam Stick X is a vibration recorder with a high performance piezoelectric accelerometer, a secondary capacitive accelerometer and other environmental sensors. This model is most popular for vibration testing.
It has been discontinued and replaced by the S3-E25D40. There are also many other new and updated products you can compare on our sensors page. If you have any questions, we're here to help!
PLEASE NOTE: LONGER LEAD TIMES
Due to the global chip shortage, some of our products require a longer lead time than the usual 2 business days + shipping. We sincerely apologize for the inconvenience and are working tirelessly to transition to a more readily available microprocessor. In the meantime, if you have any questions, please do not hesitate to reach out to our Customer Success Team.
Click for AVAILABLE PRODUCTS
Complimentary enDAQ Pelican case included with every enDAQ® sensor order.
Additional cases can be purchased here: enDAQ Accessories

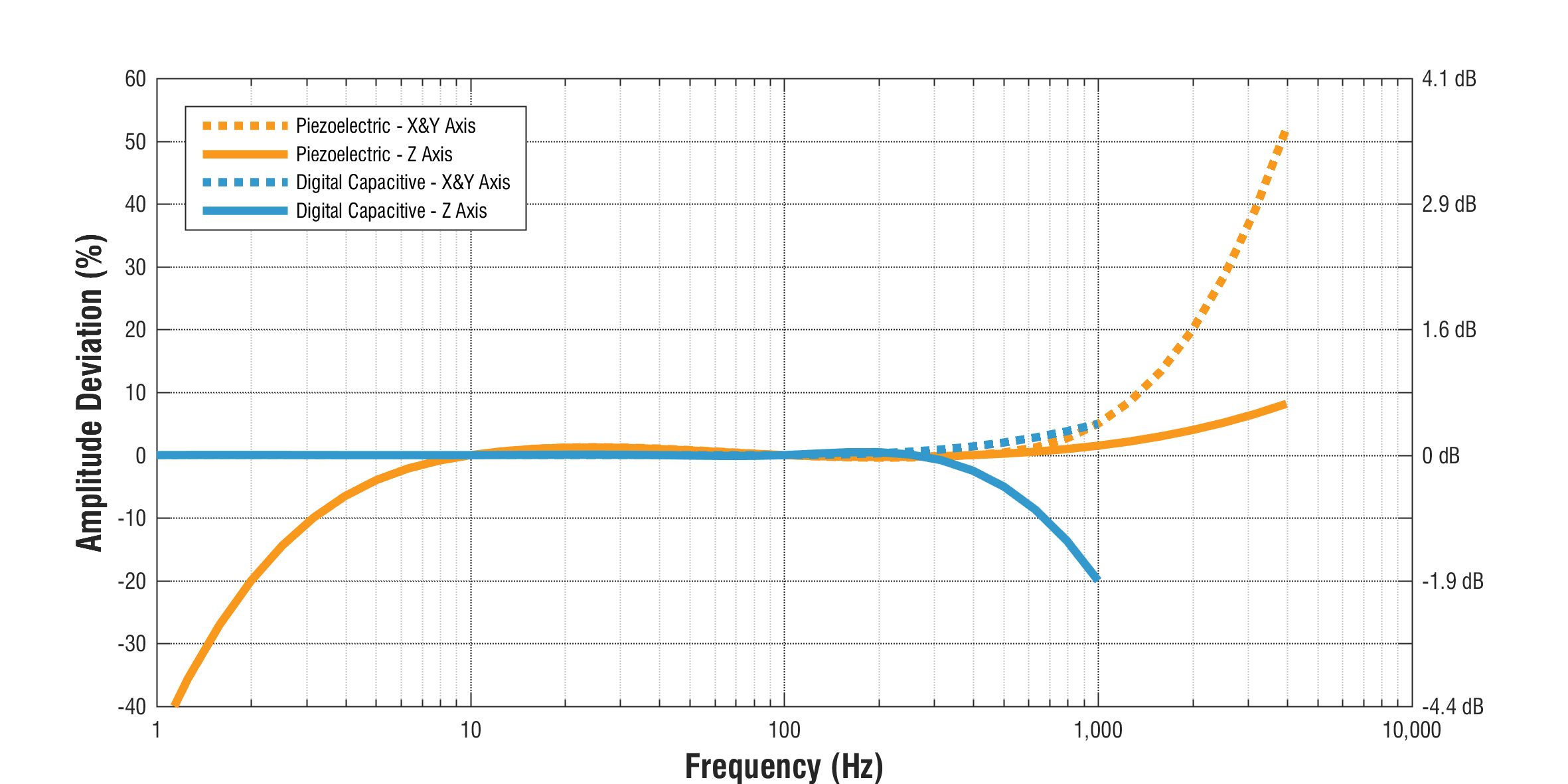

|Accelerometer Type||Range||Sampling Rate||Bandwidth||Noise||Resolution|
|Piezoelectric||± 25g||20,000 Hz||5 to 1,000 Hz||< 0.01 gRMS||0.0008 g|
|Digital Capacitive||± 16g||3,200 Hz||0 to 300 Hz||< 0.01 gRMS||0.004 g|
Please note: Piezoelectric accelerometers are susceptible to saturation due to exposure to high frequency events because they are AC coupled. If your application will have high frequency events (events with pulse widths less than 1 ms) we recommend checking out our S-R series products.
Find out more in our Piezoelectric Accelerometers Blog Post
|Sensor||Measurement Range||Resolution||Sampling Rate|
|Gyroscope||2000°/s||0.06 °/s||0 (oﬀ) to 200 Hz|
|Magnetometer||± 1300 µT||0.3 µT||0 (oﬀ) to 10 Hz|
|Temperature||-40 to 85 °C||0.01 °C||0 (oﬀ) to 10 Hz|
|Pressure||1 to 200 kPa||1.6 Pa||0 (oﬀ) to 10 Hz|
|Humidity||0 to 100 %RH||0.04% RH||0 (oﬀ) to 10 Hz|
|Light||0 to > 20 uV||<100 mlx||0 (oﬀ) to 4 Hz|
|Operating Temperature||-10°C to 80°C (14°F to 176°F)|
|Recommended Storage Temperature||15°C to 30°C (59°F to 86°F)||Recharging Temperature 0°C to 45°C (32°F to 113°F)|
|Humidity||0 to 95 %RH||Non-Condensing|
|Pressure||20 kPa to 110 kPa (2.9 psi to 16.0 psi)||Absolute Pressure|
|Shock Limit||>3,000 g||Refer to Shock Report (PDF)|
|No Electric Field Susceptibility||2 MHz to 18 GHz @ 200 V/m||Refer to EMI Test Report (PDF)|
|No Magnetic Field Susceptibility||30 Hz to 100 kHz||Refer to EMI Test Report (PDF)|
|Sample Rate||Storage Capacity||Continuous Recording||Main Accel. Trigger||2nd Accel. Trigger||Periodic/Time Trigger|
|100 Hz||5 days||13 hours||13 hours||52 hours||52 days|
|1,000 Hz||56 hours||12 hours||13 hours||52 hours||49 days|
|5,000 Hz||16 hours||9 hours||13 hours||52 hours||38 days|
|20,000 Hz||4 hours||5 hours||13 hours||49 hours||20 days|
|Mounting - Screw||4-40 Bolts (70 in-oz)|
|Mounting - Tape (Double Sided)||3M 950 Tape|
|Length||76.2 mm (3.00")|
|Width||29.8 mm (1.18")|
|Thickness||15.0 mm (0.59")|
|Ingress Protection||IP 50 (Dust Protected)|
