LOG-0004-02KG-DC-8GB-AL

S4 - Slam Stick S

$3,250.00 3,250.00
In stock
Aluminum 7075
Piezoresistive Accelerometer: ± 2,000g
Digital Capacitive Accelerometer: ± 16g
Battery: 250 mAh
Storage: 8 GB
Lead Time: 2 business days plus shipping - Shipping & Ordering
Quantity
  • Home
  • S4 - Slam Stick S (LOG-0004-02KG-DC-8GB-AL)
Product Features
  • Convenient, Configurable, and Reliable Learn More
  • Standalone Measurement System
    Embedded sensors, storage & power
  • Selectable High-Performance Accelerometers
    Variable capacitance, piezoelectric & piezoresistive
    Selectable measurement range from 16g to 2,000g
    Selectable sampling rate up to 20,000 samples per second
  • Up to 4 Billion Data Points of Memory
  • Embedded Sensor Suite
    Gyroscope, magnetometer, pressure, temperature, humidity & light
  • Triggering from Sensors and/or Time-Based
  • Rechargeable Battery Life of Over 4 Hours Continuous
    Can operate with external power
  • Simple USB Interface for Download & Charging
  • NIST Traceable Calibration
  • Trusted by Over 1,500 Different Commercial Customers
Accelerometer Specifications>> More Information
Accelerometer Type Range Sampling Rate Bandwidth Noise Resolution
Piezoresistive ± 2,000g 20,000 Hz 0 to 2,000 Hz < 1.6 gRMS 0.06 g
Digital Capacitive ± 16g 3,200 Hz 0 to 300 Hz < 0.01 gRMS 0.004 g

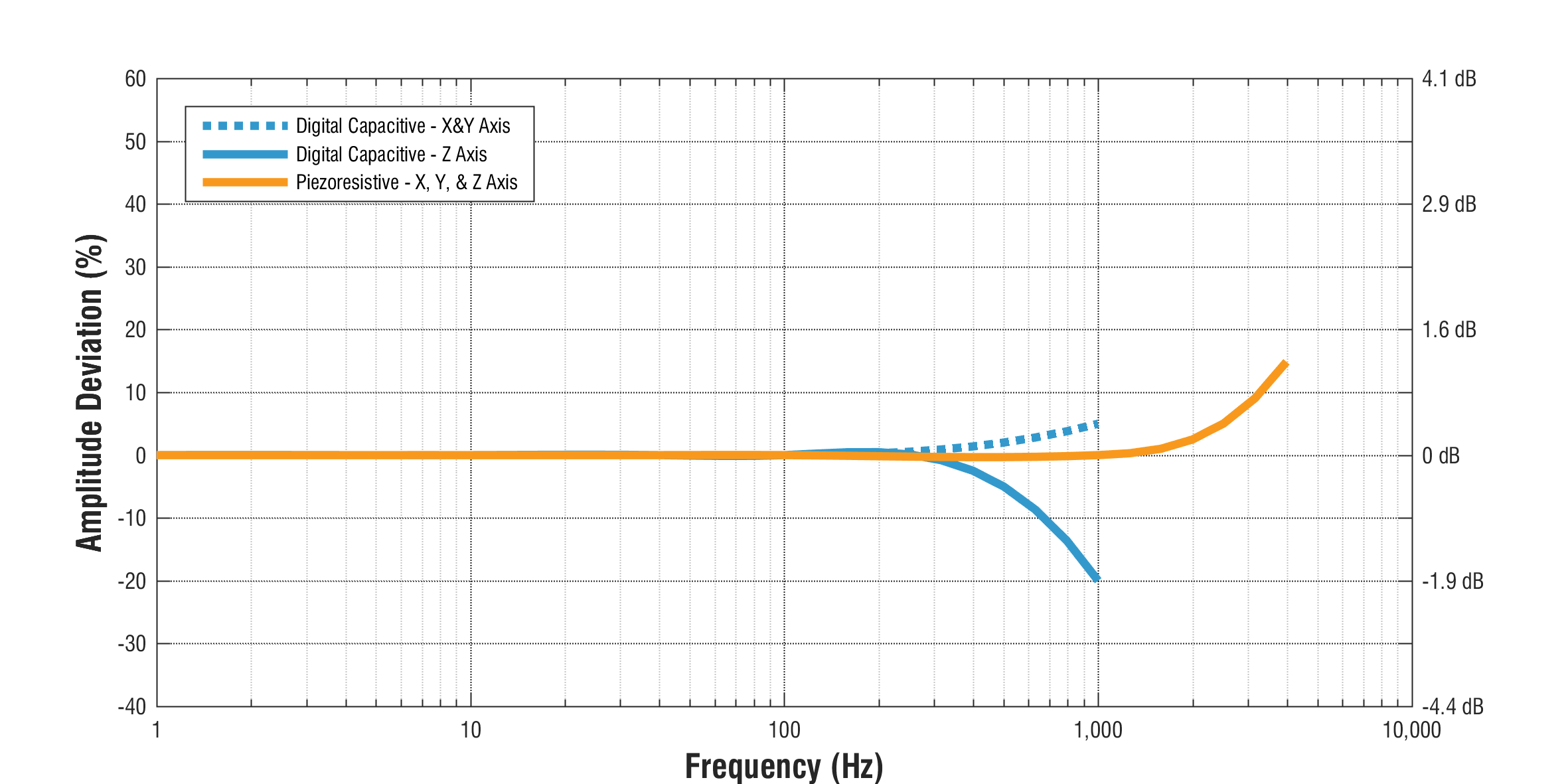

Frequency Response Plot
Additional Sensor Specifications >> More Information
Sensor Measurement Range Resolution Sampling Rate
Gyroscope2000°/s0.06 °/s0 (off) to 200 Hz
Magnetometer± 1300 µT0.3 µT0 (off) to 10 Hz
Temperature-40 to 85 °C0.01 °C0 (off) to 10 Hz
Pressure1 to 200 kPa1.6 Pa0 (off) to 10 Hz
Humidity0 to 100 %RH0.04% RH0 (off) to 10 Hz
Light0 to > 20 uV<100 mlx0 (off) to 4 Hz
Environmental Specifications >> More Information
Parameter Range Notes
Operating Temperature -10°C to 80°C (14°F to 176°F)
Recommended Storage Temperature 15°C to 30°C (59°F to 86°F) Recharging Temperature 0°C to 45°C (32°F to 113°F)
Humidity 0 to 95 %RH Non-Condensing
Pressure 20 kPa to 110 kPa (2.9 psi to 16.0 psi) Absolute Pressure
Shock Limit >3,000 g Refer to Shock Report (PDF)
No Electric Field Susceptibility 2 MHz to 18 GHz @ 200 V/m Refer to EMI Test Report (PDF)
No Magnetic Field Susceptibility 30 Hz to 100 kHz Refer to EMI Test Report (PDF)
Battery performance is heavily dependent upon the device configuration (sensor sample rates and triggers), battery age (including charging cycles), and temperature. The following table provides the battery life and storage capacity of this device assuming it has a relatively new battery and it is at room temperature. When showing performance it assumes all sensors are on at the default sample rate with the main accelerometer sample rate driving performance. With triggers, it assumes the device is in trigger mode 99% of the time. Here are some additional resources: Setting Sensor Configuration, Battery Specifications, Battery Life Estimator Tool.
Sample Rate Storage Capacity Continuous Recording Main Accel. Trigger 2nd Accel. Trigger Periodic/Time Trigger
100 Hz 22 days 11 hours 17 hours 64 hours 45 days
1,000 Hz 9 days 11 hours 17 hours 64 hours 43 days
5,000 Hz 63 hours 9 hours 16 hours 63 hours 36 days
20,000 Hz 17 hours 5 hours 16 hours 60 hours 22 days
Mechanical Specifications >> Mounting
Mass 65 grams
Case Material Aluminum 7075
Mounting - Screw 4-40 Bolts (100 in-oz)
Mounting - Tape (Double Sided) 3M 950 Tape
Length 76.2 mm (3.00")
Width 29.8 mm (1.18")
Thickness 18.3 mm (0.72")
Ingress Protection IP 50 (Dust Protected)
Free Software Features>> More Information
  • Free Standalone Software Packages
    Lab - Configuration, Quick Snapshot, Batch File Conversion
    Analyzer - Analysis of enDAQ Sensor Data in MATLAB
  • Configure Sensors for Measurement
  • Export/Convert Data to CSV or MATLAB
  • Analysis
    FFT
    PSD
    Spectogram
    Digital Filtering
