The Slam Stick X is a shock recorder with a high performance piezoelectric accelerometer, a secondary capacitive accelerometer and other environmental sensors. This model is most popular for shock testing. Its aluminum enclosure improves reliability in harsh environments and widens its frequency response.
It has been discontinued and replaced by the S4-E100D40 or the S4-R500D40. There are also many other new and updated products you can compare on our sensors page. If you have any questions, we're here to help!
Complimentary enDAQ Pelican case included with every enDAQ® sensor order.
Additional cases can be purchased here: enDAQ Accessories
Product Features
| Convenient |
|
|---|---|
| Adaptable |
|
| Reliable |
|
Accelerometer Specifications>> More Information
| Accelerometer Type | Range | Sampling Rate | Bandwidth | Noise | Resolution |
| Piezoelectric | ± 500g | 20,000 Hz | 5 to 2,000 Hz | < 0.2 gRMS | 0.015 g |
| Digital Capacitive | ± 16g | 3,200 Hz | 0 to 300 Hz | < 0.01 gRMS | 0.004 g |
Please note: Piezoelectric accelerometers are susceptible to saturation due to exposure to high frequency events because they are AC coupled. If your application will have high frequency events (events with pulse widths less than 1 ms) we recommend checking out our S-R series products.
Find out more in our Piezoelectric Accelerometers Blog Post

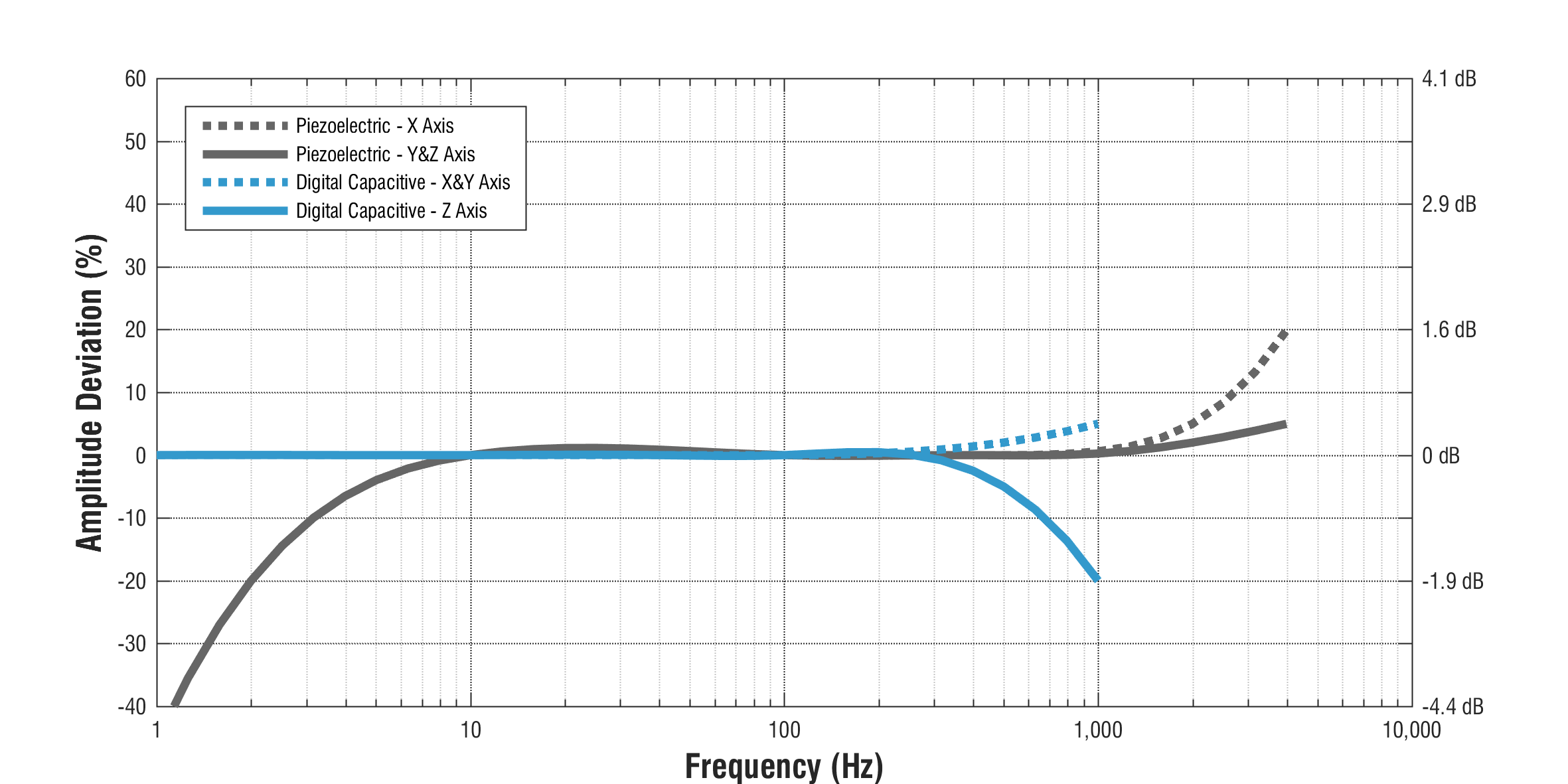

Frequency Response Plot
Additional Sensor Specifications >> More Information
| Sensor | Measurement Range | Resolution | Sampling Rate |
| Gyroscope | 2000°/s | 0.06 °/s | 0 (off) to 200 Hz |
| Magnetometer | ± 1300 µT | 0.3 µT | 0 (off) to 10 Hz |
| Temperature | -40 to 85 °C | 0.01 °C | 0 (off) to 10 Hz |
| Pressure | 1 to 200 kPa | 1.6 Pa | 0 (off) to 10 Hz |
| Humidity | 0 to 100 %RH | 0.04% RH | 0 (off) to 10 Hz |
| Light | 0 to > 20 uV | <100 mlx | 0 (off) to 4 Hz |
Environmental Specifications >> More Information
| Parameter | Range | Notes |
| Operating Temperature | -10°C to 80°C (14°F to 176°F) | |
| Recommended Storage Temperature | 15°C to 30°C (59°F to 86°F) | Recharging Temperature 0°C to 45°C (32°F to 113°F) |
| Humidity | 0 to 95 %RH | Non-Condensing |
| Pressure | 20 kPa to 110 kPa (2.9 psi to 16.0 psi) | Absolute Pressure |
| Shock Limit | >3,000 g | Refer to Shock Report (PDF) |
| No Electric Field Susceptibility | 2 MHz to 18 GHz @ 200 V/m | Refer to EMI Test Report (PDF) |
| No Magnetic Field Susceptibility | 30 Hz to 100 kHz | Refer to EMI Test Report (PDF) |
Battery performance is heavily dependent upon the device configuration (sensor sample rates and triggers), battery age (including charging cycles), and temperature. The following table provides the battery life and storage capacity of this device assuming it has a relatively new battery and it is at room temperature. When showing performance it assumes all sensors are on at the default sample rate with the main accelerometer sample rate driving performance. With triggers, it assumes the device is in trigger mode 99% of the time. Here are some additional resources: Measurement Settings, Battery Specifications, Battery Life Estimator Tool.
| Sample Rate | Storage Capacity | Continuous Recording | Main Accel. Trigger | 2nd Accel. Trigger | Periodic/Time Trigger |
| 100 Hz | 22 days | 16 hours | 17 hours | 65 hours | 65 days |
| 1,000 Hz | 9 days | 15 hours | 17 hours | 65 hours | 61 days |
| 5,000 Hz | 63 hours | 12 hours | 17 hours | 64 hours | 47 days |
| 20,000 Hz | 17 hours | 6 hours | 16 hours | 62 hours | 25 days |
Dimensions>> Download CAD Model
Mechanical Specifications >> Mounting
| Mass | 65 grams |
| Case Material | Aluminum 7075 |
| Mounting - Screw | 4-40 Bolts (100 in-oz) |
| Mounting - Tape (Double Sided) | 3M 950 Tape |
| Length | 76.2 mm (3.00") |
| Width | 29.8 mm (1.18") |
| Thickness | 18.3 mm (0.72") |
| Ingress Protection | IP 50 (Dust Protected) |
Free Software Features>> More Information
enDAQ LAB
Completely self-contained software application - no drivers or installation required.
- Configures enDAQ sensors
- Basic Reporting Capabilites
- View multiple sensor channels concurrently
- Quick Snapshot of data from enDAQ sensors
- Batch export and convert data
enDAQ CLOUD
Upload raw data directly to the Cloud to generate standard and advanced custom reports.
- Pre-Configured Standard Reports
- Advanced Analysis Metrics
- API Access
- 100 GB Storage
- Unlimited Custom Alerts
Open Source Python Libraries
Provides the functionality to adapt analysis and give you the exact data you need for your specific application.
- Directly Load & Parse data from IDE files
- Generate power spectral densities (PSD) and shock response spectra (SRS)
- Double integrate into velocity & displacement and resample data
