Waterproof Enclosure - For W8 Sensors
The IP rating of our enDAQ sensors are IP50 which means it is dust-protected and cannot be subjected to liquid. We recognize that many of our customers perform testing in harsh environments and need a way to protect their sensors which is why we developed this waterproof mounting accessory. This accessory was engineered to provide a durable, safe, and secure enclosure for testing in harsh environments with an IP68 rating. It also comes equipped with:
- Three rectangular mounting magnets each with an 84.4 lb pulling force
- Total of 253.2 lb pull force**
*Does not include enDAQ sensor
**Caution: Take care when handling magnets near metal objects
Complimentary enDAQ Pelican case included with every enDAQ® sensor order.
Additional cases can be purchased here: enDAQ Accessories
- IP 68 with included O-ring seal
- Tested to a water pressure of 150 psi (1034 kPa) or
a water depth of 345 feet (105 meters) - Tested for 72 hours at constant pressure of 30 PSI
- Total of 253.2 lb pull force mounting magnets

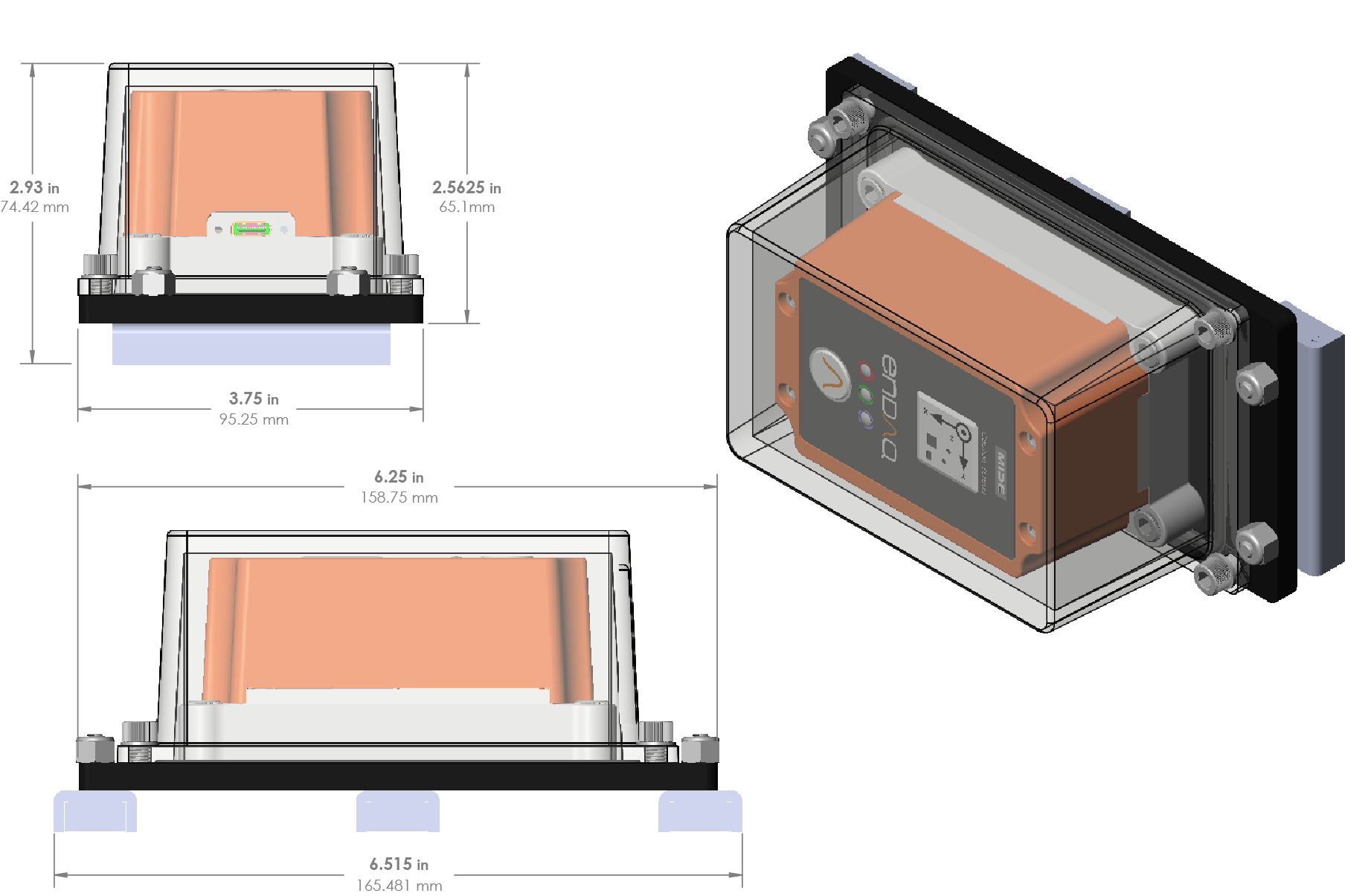

- Dimensions (in): 2.330 (H) x 3.095 (W) x 5.730 (L)
- Dimensions (mm): 59.182 (H) x 78.613 (W) x 145.542 (L)
- Total mass: 330 g
- Total mass (including magnets): 576 g
